Credential Store

Overview

The Credential Store provides a secure, centralized location for managing credentials used by 1Gateway to connect to external systems. Credentials stored here can be referenced by certain out-of-the-box (OOTB) plugins and by custom Groovy connectors.

note

While the Credential Store remains supported, it is considered legacy for new integrations. New developments should use Endpoint-based credential configuration, which provides better structure, security, and maintainability.

When to Use the Credential Store

The Credential Store is applicable in the following scenarios:

• Existing integrations that rely on legacy credential references
• Out-of-the-box plugins that still require credentials from the store
• Custom Groovy connectors where Endpoint configuration is not yet available

For all new integrations, Endpoint configurations are the recommended approach.

Accessing the Credential Store

To access the Credential Store:

1. Open the 1Gateway user interface
2. Navigate to Left Menu → Credentials This section displays all configured credential profiles.

Supported Credential Types

The Credential Store supports multiple credential types to accommodate different external systems and authentication mechanisms.

Credential Type	Description
FTP	Defines connection credentials for an FTP server, including host, username, and password.
Application	Authenticates against an application by posting a JSON payload containing username and password to a configured URL. Subsequent requests rely on session cookies.
SQL	Defines JDBC connection credentials for connecting to a SQL database.
NTLM	Microsoft NTLM authentication for systems requiring Windows-based security protocols.
SMTP	Credentials used for sending email via an SMTP server.
Basic	Basic authentication using a Base64-encoded username and password, typically for HTTP-based integrations.
Proxy	Authentication details used when routing traffic through a proxy server.
OAuth	OAuth-based credentials for delegated access to external systems without sharing passwords.

Credential Profiles

Each credential entry is stored as a credential profile and includes:

• A Profile Name: A meaningful identifier that describes the purpose or target system (for example: influxdb-auth, ftp-partner-a).
• Authentication-specific configuration fields: These vary depending on the selected credential type.

The profile name is used by plugins and scripts to reference the stored credentials.

Credential Configuration Fields

Each credential profile in the Credential Store is created by selecting a credential type and providing the required configuration fields. The available fields depend on the selected credential type and determine how 1Gateway authenticates to the external system.

FTP Credentials

Used to authenticate against an FTP server.

Field	Description
FTP Server	Hostname or IP address of the FTP server
Port	FTP server port
User	Username used for authentication
Password	Password associated with the FTP user

Application Credentials

Used for applications that authenticate via a login endpoint returning a session or cookies.

Field	Description
Logon URL	URL to which the authentication request is sent
User	Application username
Password	Application password

SQL Credentials

Used to authenticate against a relational database.

Field	Description
Connection String	JDBC connection string for the database
User	Database username
Password	Database password

NTLM Credentials

Used for systems requiring Microsoft NTLM authentication.

Field	Description
NTLM Domain	Windows domain name
NTLM Workstation	Workstation or client host name
User	NTLM username
Password	NTLM password

SMTP Credentials

Used for sending email via an SMTP server.

Field	Description
Email Server	Hostname or IP address of the SMTP server
Port	SMTP server port
Encryption	Transport encryption type (nossl, ssl, tls)
Need Authentication	Indicates whether authentication is required (true or false)
User	SMTP username (required if authentication is enabled)
Password	SMTP password (required if authentication is enabled)

Basic Authentication Credentials

Used for protocols or integrations that require only a username and password (for example HTTP Basic authentication).

Field	Description
User	Username
Password	Password

Proxy Credentials

Used to authenticate through a proxy server.

Field	Description
URL	Proxy server URL
User	Proxy username
Password	Proxy password

OAuth Credentials

Used for OAuth-based authentication and token acquisition.

Field	Description
Client ID	OAuth client identifier
Grant Type	OAuth grant type
Client Secret	OAuth client secret
Token URL	URL of the OAuth token endpoint
User Password	Resource owner password (used when applicable to the grant type)

Usage

Usage in Out-of-the-Box Plugins

Some out-of-the-box plugins require credentials to be selected from the Credential Store.

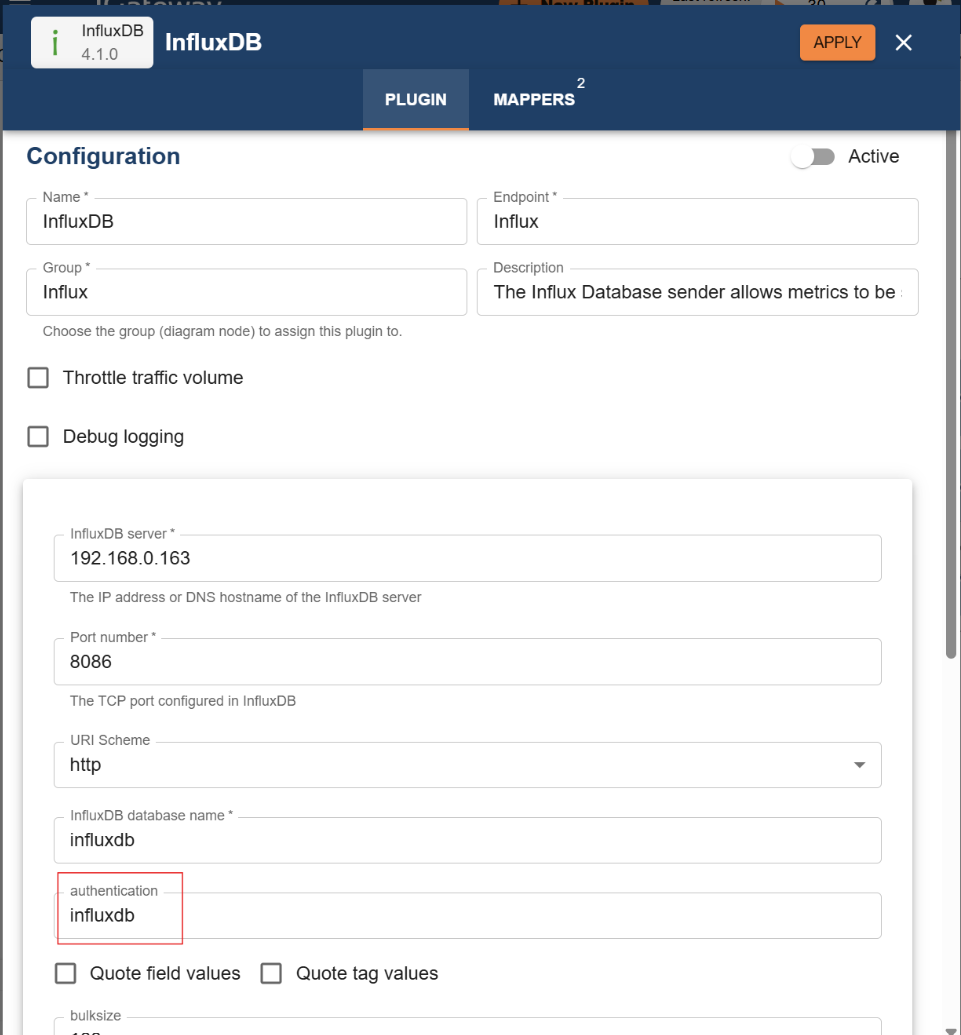

Example: The InfluxDB plugin includes a field for authentication. This field must contain the credential profile name configured in the Credential Store. At runtime, the plugin retrieves the credentials securely and applies them to the external system connection.

Usage in Custom Groovy Plugins

Custom integrations may use Groovy plugins to connect to external systems programmatically. For HTTP-based requests, credentials from the Credential Store can be applied automatically by setting the authentication profile in the script.

Example:

http = option.rest
http.setAuth("custom")

In this example:

• "custom" refers to the credential profile name. The authentication details are automatically applied to all HTTP requests executed by the script

Recommendation for Groovy Integrations

Although the Credential Store can still be used in Groovy plugins, the recommended approach is to configure credentials using the Endpoint plugin. Endpoint-based configuration offers:

• Better separation of concerns

• Improved security and lifecycle management

• Clearer ownership of connection settings

• Future-proof compatibility
