Database Sender

Description

The Database Sender Plugin persists messages from 1Gateway directly into a relational database using JDBC-compatible connections.

Incoming messages (such as metrics or alarms) are mapped via configured mappers (e.g., metric2database or alarm2database) and inserted into a target database table.

The Database Sender Plugin is commonly used for:

• Long-term metric storage
• Analytics and reporting
• Exporting monitoring data to data lakes or analytical databases

---

Supported Databases

The Database Sender Plugin uses JDBC and therefore supports a wide range of databases.

Database	JDBC Driver	Notes
PostgreSQL	postgresql	Fully supported
MySQL / MariaDB	mysql-connector-j	Fully supported
Oracle	ojdbc	Requires Oracle JDBC driver
Microsoft SQL Server	mssql-jdbc	Fully supported
H2	Built-in	Mainly for testing

Note

Any database with a valid JDBC driver can be used, provided the correct connection string and driver are available in 1Gateway. If the JDBC driver doesn’t come out-of-the-box, install it in 1Gateway and restart the service.

---

Example Database Insert

The plugin inserts mapped fields into the configured table. The actual structure depends on the mapper used.

Example target table:

CREATE TABLE metrics (
  timestamp    DateTime,
  source       String,
  metric_name  String,
  value        Float64
);

Example mapped insert (conceptual):

INSERT INTO metrics (timestamp, source, metric_name, value)
VALUES (?, ?, ?, ?);

---

Prerequisites

To ensure the Database Sender Plugin functions correctly, verify the following:

• 1Gateway Version: 4.1.2 or later.
• JDBC Driver: The relevant driver must be installed in the 1Gateway environment followed by a service restart.
• Schema Ready: The target database and table must be created manually before the plugin starts sending data.
• Mapping: A valid mapper configuration must be set up to translate 1Gateway fields to database columns.
• Network: Ensure firewalls allow connectivity from the 1Gateway host to the database port.

---

Sender Configuration

The Database Sender Plugin utilizes a Database Connection Profile to manage credentials and target locations.

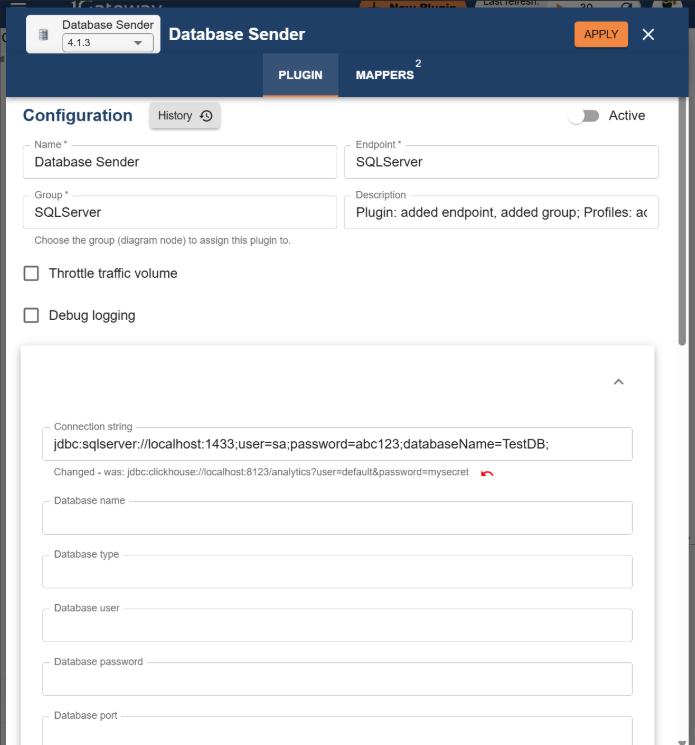

Database Connection Profile

Field name	Supported values	Description	Required	Example
Connection string	URL	Full JDBC connection string	No*	jdbc:sqlserver://localhost:1433;databaseName=TestDB;
Database name	String	Name of the target DB	No*	TestDB
Database type	String	Type of SQL engine	No*	sqlserver, sqlite
Database user	String	Username for authentication	No*	sa
Database password	String	Password for authentication	No*	abc123
Database port	Number	Port number	No*	1433
Database host	String	Hostname or IP address	No*	localhost

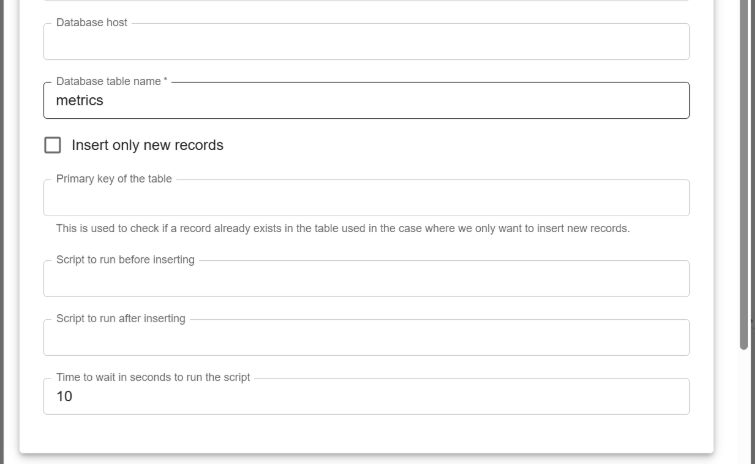

Database table name	String	Destination table	Yes	TestTable
Script before insert	Filename	SQL script to run before data entry	No	beforeScript.sql
Script after insert	Filename	SQL script to run after data entry	No	afterScript.sql

*Not required if a full Connection string is provided.

---

Message Flow

The following sequence describes how data travels from 1Gateway to your database:

1. Ingestion: Message is received from 1Gateway.
2. Matching: The topic is matched against the Main Profile criteria.
3. Mapping: The message payload is transformed via the configured mapper.
4. Resolution: The Database Connection Profile is resolved to establish a session.
5. Pre-processing: The "Before script" is executed (if configured).
6. Execution: The SQL INSERT or UPDATE is performed.
7. Post-processing: The "After script" is executed (if configured).
