Ceeview

Sender Description

The Ceeview sender plugin sends metrics, events, and assets from 1Gateway into Ceeview. The messages are mapped to a format that the Ceeview sender plugin can process and converted to a JSON string, which is then sent to Ceeview through the Ceeview REST API.

In the CMDB use case, assets are also retrieved from Ceeview to create a replica collection. Pre-configured rules are used to match existing assets in the Ceeview replica to CI's in other systems. If a match is found, it is recorded in 1Gateway and updated in Ceeview. If its not, a new asset is created. Asset attributes can also be created.

An example of a JSON metric sent to CeeView:

{
  "apiToken": "545d0...",
  "options": "redraw=false",
  "data": [
    {
      "service": "MyService",
      "element": "Madrid",
      "qualifier": "temperature",
      "value": "23.4"
    }
  ]
}

This message shows the current temperature in Madrid.

In the CMDB use case, assets are also retrieved from Ceeview to create a replica collection. Pre-configured rules are used to match existing assets in the Ceeview replica to CIs (Configuration Items) in other systems. If a match is found, it is recorded in 1Gateway and updated in Ceeview. If it's not, a new asset is created. Asset attributes can also be configured.

Prerequisites

• MongoDB installed and configured in 1Gateway (for CMDB use case only).
• Ceeview version needs to be 2.3 or later
• Ceeview token

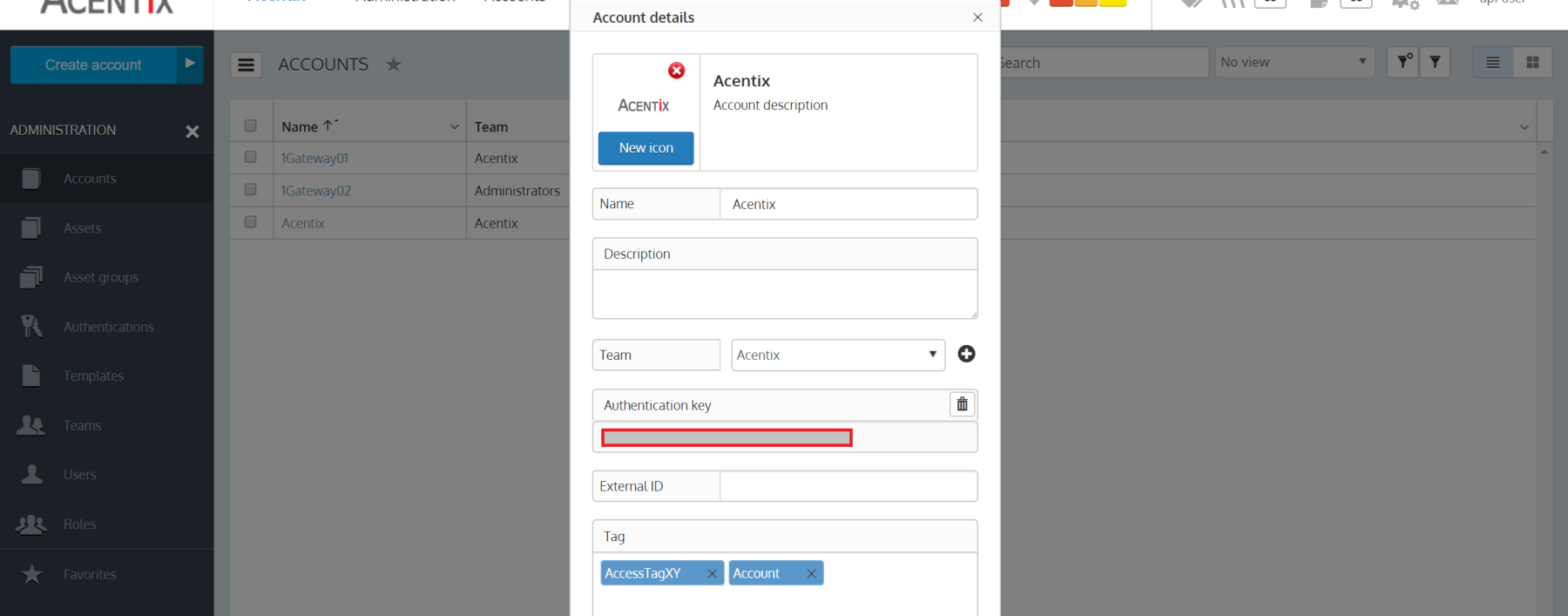

To access the CeeView token, go to ceeview. Log in and go to Administration. Click on the user. The token is the authentication key shown.

Get the token from Ceeview.

Sender Configuration

The Ceeview Sender Plugin consists of four configuration types, main, metric, event, and cmdb.

All of the fields in the metric and event configurations are the defaults for the messages and will only be populated in the message if there isn't an existing one already.

Main

Field name	Supported Values	Description
server	Valid IP address or hostname	CeeView server
port number	Valid port number	Valid port number
apiToken	Valid API token	Token generated by CeeView for API authentication

Metric

Field	Supported Values	Description
Message type for metrics	Any string	1Gateway message type for CeeView metrics. Needs to be the same as in the metric2ceeview mapper
Default Ceeview asset	Any string	Default asset to associate metric with.
Default Ceeview instance	Any string	Default name of metric instance.
Default category	Any string	Default metric category.
Default Ceeview identifier	Any string	Default string that identifies the source of the metric.
Default unit	Any string	Default metric unit type.
Default Ceeview type	Any string	Default metric data type.

Event

Field	Supported Values	Description
Message type for events	Any string	1Gateway message type for CeeView events. Needs to be the same as in the state2ceeview mapper.
Default Ceeview monitor name	Any string	Default monitor name.
Default Ceeview asset name	Any string	Default asset name.
Default account id	Any string	Default identifier for the sub-account.
Default Ceeview asset group	Any string	Default name of the asset-group associated with the monitor.

info

All of the fields in the metric and event configurations are the defaults for the messages and will only be populated in the message if there isn't an existing one already.

CMDB

Field	Supported Values	Description
Do not insert new CIs	Boolean	If TRUE, the plugin won't create new CIs and will only update existing CIs based on the match found.
Simulation mode	Boolean	If TRUE, assets are saved in a simulation collection and are not sent to Ceeview.
CMDB replica collection	Any string	Name of the CMDB replica collection where assets from Ceeview are stored. Used by matching rules to decide if there is a match between Ceeview assets and other systems CIs.
Replica expiration (in hours)	Any integer	Expiration time of the replica collection. If expired, the replica collection will be rebuilt.

Main

Field name	Supported Values	Description
Message type	Any string	Message type of the asset polled for. These assets are inserted in the replica collection and used for matching
API suffix	Any string	URL suffix to use. The default value is /mgmt/assets
Run interval in seconds	Any string	Interval between two poll cycles

Rule profiles

Field name	Supported Values	Description
Script	Groovy script	Groovy script to evaluate the CI content and search for a match in the replica
Run interval in seconds	Any string	Rule priority. Rules are evaluated in ascending order until a match is found
